Product Details:
|
| Elbow Name: | Carbon Steel Pipe Elbow | Elbow Size: | DN15-DN3000 Carbon Steel Elbow |
|---|---|---|---|
| Elbow Standard: | Asme Jis B16.1 B16.2 Carbon Steel Elbow | Elbow Packing: | Wooden Box Wooden Pallet Carbon Steel Elbow |
| ELbow Type: | 90 ° Long/short Radius Elbow | Elbow Color: | Black Painting Red Painting Carbon Steel Elbow |
| Forged Butt Welding: | Pipe Fitting Elbow With Good Quality | ASTM Elbow: | Carbon Steel Fitting Elbow |
| Standard: | ASME , ANSI , DIN , GOST , ASME/ANSI B16.9 | Material: | Carbon Steel, Stainless Steel, Alloy Steel, WPHY60, Stainless/alloy Steel |
| High Light: | ASTM A106 Carbon Steel Elbow,XXS Carbon Steel Elbow,90 Degree Short Radius Elbow |
||

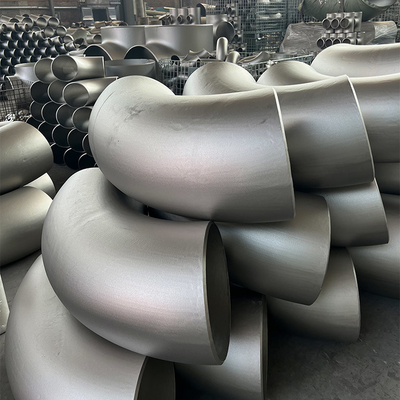

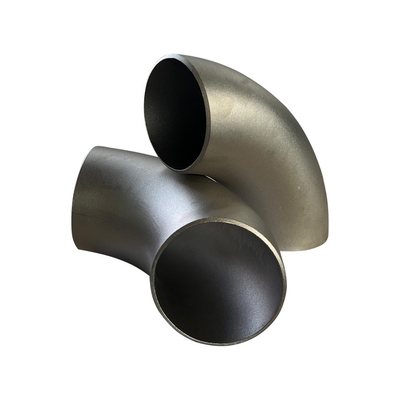

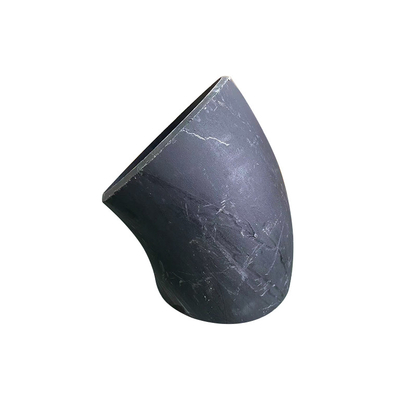

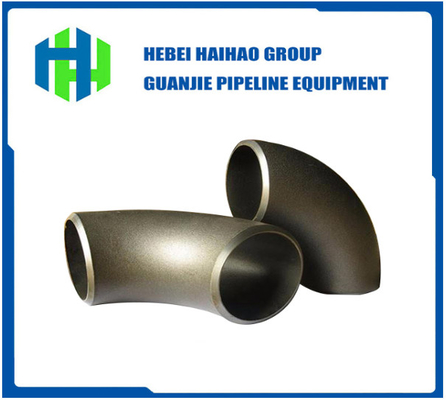

ASTM A105/A106 45 Degree/90 Degree Carbon Steel Elbow Long/Short Radius Carbon Steel Pipe Fitting Elbow
Product name: ASTM A105/A106 45 Degree/90 Degree Carbon Steel Elbow Long/Short Radius Carbon Steel Pipe Fitting Elbow
ELBOW LR ANSI B.16.9 ASTM A234 WPB WELD, is widely used in kinds of industry and building areas all over the world.It can be used for shipbuliding,petroleum,chemical,gas,power,construction,etc.
Standard: ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640
DIN 2605 DIN2615 DIN2616 DIN2617
GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634
JIS B2311 JISB2312 JISB2313 JISB2316
ISO 3419-1981 ISO5251-1981
| Size: | ASME JIS DIN THICKNESS SHC 10 - XXS |
| Type | Carbon Steel Elbow ASTM A106/A105 45°/90° Long/Short Radius Carbon Steel Pipe Fitting Elbow |
| Radius: | Long Radius Elbow( 90deg & 45deg & 180deg.),Short Radius Elbow (90deg & 180deg.) |
| Material |
carbon steel A234 WPB, A105, A283-D, A135-A, A53-A, A106-A, A179-C, A214-C, A192, A226, A315-B, A53-B, A106-B, A106-C, A178-C, A210-A-1, A210-C. |
| standards | ASME B 16.5 ANSI,DIN,JIS,ASME and UNI etc |
| Wall Thickness: | sch10 - sch xxs |
| Manufacturing standard: | ASME,ANSI, JIS, DIN, EN, API 5L, etc. |
| Bending Angle: |
Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients. |
| Connection | Butt-welding, S |
| Applicable standard | ASME,ASTM,MSS,JIS,DIN,EN |
| Quality:ISO 9001 | ISO2000-Quality-Systerm has been passed |
| End Bevel: | According to the bevel of welding pipe fittings construction |
| Surface treatment: | black oil, black painting elbow |
| Packing: | wodden case,wooden pallet plastic bag or as per customers' requirements |
