Product Details:
|
| Elbow Material: | Carbon Steel | Elbow Name: | Carbon Steel Butt Welded Pipe Fitting 90 Degree Elbow |
|---|---|---|---|
| Elbow Size: | DN15-DN3000 Carbon Steel Elbow | Products Standard: | Asme Jis B16.1 B16.2 Carbon Steel Elbow |
| Elbow Packing: | Wooden Box Wooden Pallet Carbon Steel Elbow | Elbow Delivery: | 5-25 Day Carbon Steel Elbow |
| Steel Elbow Color: | Carbon Steel Black Painting Red Painting Carbon Steel Elbow | ||
| High Light: | ANSI B16.25 Butt Welded Pipe Fittings,Sch 140 Butt Welded Pipe Fittings,CS Black Iron Pipe 90 Degree Bend |
||

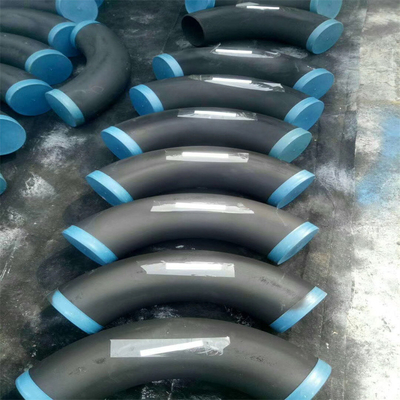

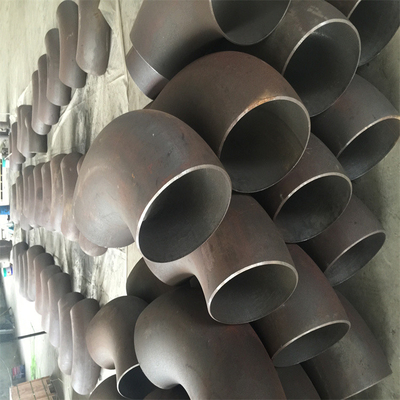

Carbon Steel Butt Welded Pipe Fitting 90 Degree Elbow
Product name: Carbon Steel Butt Welded Pipe Fitting 90 Degree Elbow
ELBOW LR ANSI B.16.9 ASTM A234 WPB WELD, is widely used in kinds of industry and building areas all over the world.It can be used for shipbuliding,petroleum,chemical,gas,power,construction,etc.
ELBOW L/R ANSI B.16.9 ASTM A234 WPB WELD
Type :large-diameter carbon steel pipe elbow
Radius: Short radius carbon steel elbow
Degree:30.60. 90 degree Short radius carbon steel elbow
Application:shipbuliding,petroleum,chemical,gas,power,construction,etc
Product name: Carbon Steel Butt Welded Pipe Fitting 90 Degree Elbow
Size: 1/4” to 48” Outside Diameter 13.7 mm to 1219 mm
Standard: ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640
DIN 2605 DIN2615 DIN2616 DIN2617
GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634
JIS B2311 JISB2312 JISB2313 JISB2316
ISO 3419-1981 ISO5251-1981
| Size: | Seamless elbow:1/2"~24" DN15~DN600,Welded Elbow: 4"~78" DN150~DN1900 |
| Type | Pipe fitting Carbon Steel Butt Welded Pipe Fitting 90 Degree Elbow |
| Radius: | L/R Elbow( 90deg & 45deg & 180deg.),S/R Elbow (90deg & 180deg.) |
| Material | carbon steel, WPB, Q235, Q235B |
| standards | ANSI,DIN,JIS,ASME and UNI etc |
| Wall Thickness: | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s |
| Manufacturing standard: | ANSI, JIS, DIN, EN, API 5L, etc. |
| Bending Angle: |
Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients. |
| Connection | Butt-welding, SM |
| Applicable standard | ASME,ASTM,MSS,JIS,DIN,EN |
| Quality:ISO 9001 | ISO2000-Quality-Systerm has been passed |
| End Bevel: | According to the bevel of welding pipe fittings construction |
| Surface treatment: | Shot blasted, rust-proof black oil. |
| Packing: | wodden case,wooden pallet plastic bag or as per customers' requirements |
| Delivery time | accroding to customers' requirement |
Material:A234 WPB, A105, A283-D, A135-A, A53-A, A106-A, A179-C, A214-C, A192, A226, A315-B, A53-B, A106-B, A106-C, A178-C, A210-A-1, A210-C.
Certificates: API5L ,ISO 9001:2008,SGS, BV, ccic
Wall thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment: black paint, varnish, oil, galvanized
Marking: Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Ends: Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Packaging: wooden case & pallet
Test: Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
Application: liquid delivery
Structure pipe. High and low pressure Boiler tube .Seamless steel tubes for petroleum cracking .oil pipe.gas pipe
Productivity: 15000 tons per month
Min Order: 1 pc
Delivery Time: 10-40 days
Payment Term : TT, LC at sight, etc.
Advantages: 1.Reasonable price with excellent quality
2.Abundant stock and prompt delivery
3.Rich supply and export experience, sincere service
4.Reliable forwarder, 2-hour away from port.
Company/Factory Information
Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; exquisite processes including forging, stamping, medium-frequency pushing, machining, cold forming, hot extrusion and heat treatment; and advanced detection devices in terms of chemical analysis, metallographic analysis, non-destructive testing and mechanical performance tests. Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.
“Haihao Group” trademark has been identified as “China Famous Brand” by the State Administration for Industry and Commerce. Haihao Group is the first enterprise winning a famous brand in China’s pipeline accessory industry and have won the title of Hebei Brand-name Products. Furthermore, Haihao Group has passed the certifications of quality, environment and occupation health safety management system, American Bureau of Shipping ABS and French Classification Society, and the EU certification. Haihao Group is a member and supplier of the CNPC (China National Petroleum Corporation), the SINOPEC (China Petrochemical Corporation) and the State Power Corporation Power Station Accessory Network. Moreover, Haihao Group is a member of China Forging Association and have been rated as a Grade AAA Credit Enterprise by the Agricultural Bank of China Hebei Branch. Our Haihao brand flange and pipe fittings sell well in over 30 provinces and cities of China and are also exported to more than 20 other countries and regions. Haihao Group provides high-quality products and set up a good reputation.
ELbows packing
Wooden box Wooden pallet
