Product Details:
|
| Elbow Name: | Carbon Steel Elbow | Elbow Standard: | ASME, ANSI, DIN, GOST, ASME/ANSI B16.9 |
|---|---|---|---|
| Elbow Color: | Carbon Steel Black Painting Red Painting Carbon Steel Elbow | Connection:: | Welding, Butt-Welding |
| Material: | Carbon Steel, Stainless Steel, Alloy Steel, WPHY60, Stainless/alloy Steel | ||
| High Light: | GOST Carbon Steel Elbow,Sch 80 Carbon Steel Elbow,Seamless Steel Butt Welding Elbow |
||

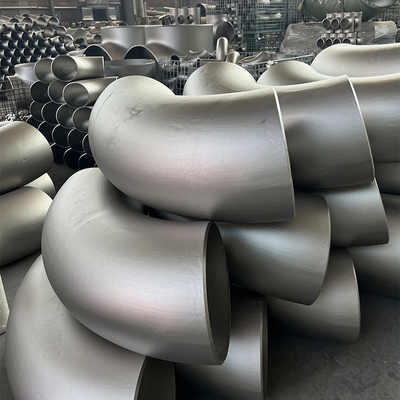

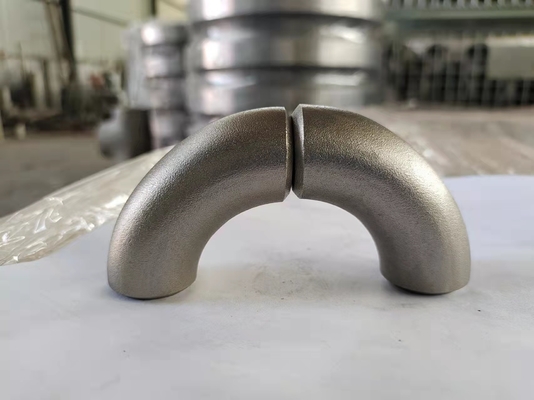

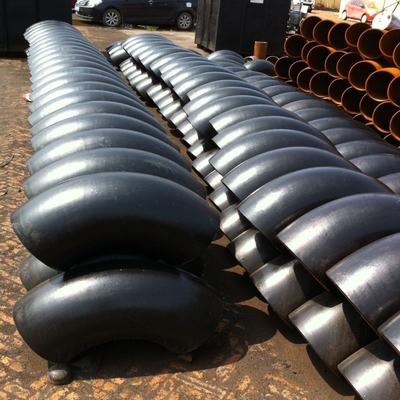

Seamless Carbon Steel Elbows For Steel Pipe Carbon Steel Pipe Elbow Butt Weld Elbow
1. Elbow(45deg, 90deg and 180deg lr and sr)
2. Size: 1/2"-36" can be seamless, 5"-110" can be welded"
3. Thickness: Sch20, Std, xs, xxs, sch10, sch20, sch30, sch40, sch60, sch80, sch160, etc.
4. Carbon steel: A234 wpb, st37.2, st35.8, API 5L GR B, API 5L X42, API 5L X52, API 5L X60, API 5L X65, API 5L X70 and so on.
5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
With the best products, competitive prices and sound technical service, Shandong Molong has been building a long- term and good relationship with CNPC, Sinopec, CNOOC and Yanchang Oil Fields and other national engineering machinery manufacturers in China and TNK-BP, Chevron, KOC, OXY, Rosneft and ADNOC etc in overseas markets. The ultimate goal of Shandong Molong is to develop into a world- class reputable energy resources equipment manufacturer and good service provider by improving the performance of products and constantly providing best products and all- around timely services to the customers at home and abroad.
| Size: | Seamless elbow:1/2"~24" DN15~DN600,Welded Elbow: 4"~78" DN150~DN1900 |
| Type | Pipe fitting ASTM Forged Butt Welding Carbon Steel Pipe Fitting Elbow |
| Radius: | L/R Elbow( 60 degree 90deg & 45deg & 180deg.),S/R Elbow (60 degree 90deg & 180deg.) |
| Material | carbon steel |
| standards | ASME B 16.5 ANSI,DIN,JIS,ASME and UNI etc |
| Wall Thickness: | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s |
| Manufacturing standard: | ASME,ANSI, JIS, DIN, EN, API 5L, etc. |
| Bending Angle: |
Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients. |
| Connection | Butt-welding, SM |
| Applicable standard | ASME,ASTM,MSS,JIS,DIN,EN |
| End Bevel: | According to the bevel of welding pipe fittings construction |
| Surface treatment: | Shot blasted, rust-proof black oil, black painting |
| Packing: | wodden case,wooden pallet plastic bag or as per customers' requirements |
| Delivery time | General 7-10 working days ,but accept accroding to customers' requirement |
Material:A234 WPB, A105, A283-D, A135-A, A53-A, A106-A, A179-C, A214-C, A192, A226, A315-B, A53-B, A106-B, A106-C, A178-C, A210-A-1, A210-C.
Certificates: API5L ,ISO 9001:2008,SGS, BV, ccic
Wall thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment: black paint, varnish, oil, galvanized
Marking: Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Ends: Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Packaging: wooden case & pallet
Test: Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
Application: liquid delivery
Structure pipe. High and low pressure Boiler tube .Seamless steel tubes for petroleum cracking .oil pipe.gas pipe
Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; exquisite processes including forging, stamping, medium-frequency pushing, machining, cold forming, hot extrusion and heat treatment; and advanced detection devices in terms of chemical analysis, metallographic analysis, non-destructive testing and mechanical performance tests. Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.
“Haihao Group” trademark has been identified as “China Famous Brand” by the State Administration for Industry and Commerce. Haihao Group is the first enterprise winning a famous brand in China’s pipeline accessory industry and have won the title of Hebei Brand-name Products. Furthermore, Haihao Group has passed the certifications of quality, environment and occupation health safety management system, American Bureau of Shipping ABS and French Classification Society, and the EU certification. Haihao Group is a member and supplier of the CNPC (China National Petroleum Corporation), the SINOPEC (China Petrochemical Corporation) and the State Power Corporation Power Station Accessory Network. Moreover, Haihao Group is a member of China Forging Association and have been rated as a Grade AAA Credit Enterprise by the Agricultural Bank of China Hebei Branch. Our Haihao brand flange and pipe fittings sell well in over 30 provinces and cities of China and are also exported to more than 20 other countries and regions. Haihao Group provides high-quality products and set up a good reputation.

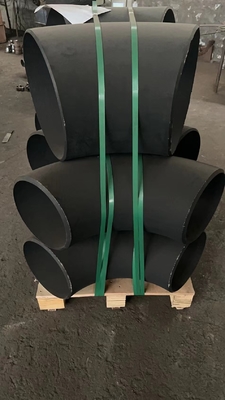

ELbows packing
Wooden box Wooden pallet
