Product Details:
|
| Product Name: | Slip On Pipe Flanges | Size: | 1/2"-24" |
|---|---|---|---|
| Flange Sealing Facement: | RF | Standard: | EN1092 |
| Process: | Forged | Pressure: | PN10-PN100 |
| Application: | Connect Pipes | Material Grade: | F316/F316L |
| High Light: | Raised Face Slip On Flange F316,Raised Face Slip On Flange F316L,Weld Neck Slip On Flange |
||

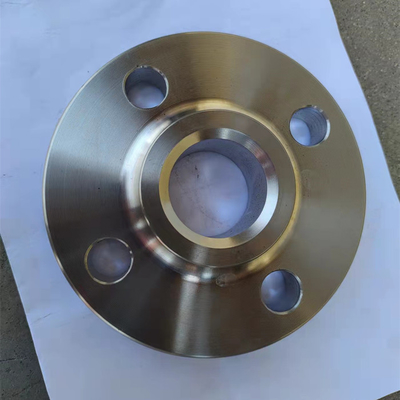

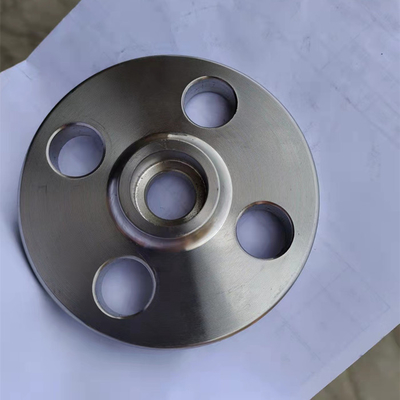

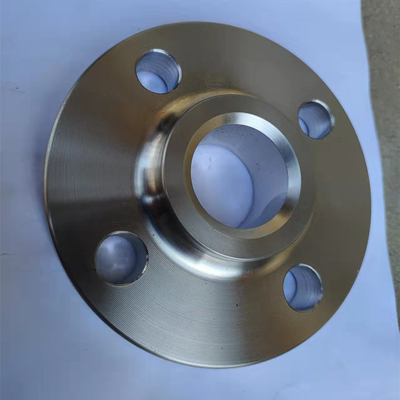

EN1092 TYPE12 F316/F316L Slip On Pipe Flange Raised Face Flance
SO flange is short for slip on Flange. The SO flange is also a flat welding flange, because there is a short neck, which improves the strength of the slip on flange with a neck. So it can be used on higher pressure pipelines. The slip on flange is the same as the flat welding flange, which is also a flange that extends the steel pipe, pipe fittings, etc.
| Product Name | EN1092 TYPE12 F316/F316L Slip On Pipe Flange Raised Face Flance | |
| Types | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange | |
| Face Finish | RF,FF,RTJ,TF,GF | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2631 2573 2527 2565 2641 | |
| GOST | GOST 12820-80,GOST 12821-80,Gost Blind | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
| BS | BS4504,BS10 Table D/E | |
| SABS | SABS 1123 | |
| Material | ANSI | CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | CS SS400,SF440,SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| SABS | CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| SABS | DN10-DN600 | |
| Coating | varnish, black paint, anti-rust oil, galvanizing etc | |
| Usage | connection of all kinds of pipeline. to convey the water, steam, air, gas and oil | |
| Package | Wooden cases/pallets | |
| Certificate | ISO9001:2008, CE | |
| Delivery | According to the quantity | |
