Product Details:
|
| Origin: | Hebei China Flange | Product Name:: | Plate Flange |
|---|---|---|---|
| Stainless Steel Plate/ Flat Flange: | Top Quality Reliable And Cheap Steel Flange | WN Welded Flange: | Carbon Steel SS WN Flange |
| Product Name: | Welding Neck Flange,Pipe Flange,hydraulic Flange,Stainless Steel Flange,Cnc Part | Pressure: | Class150/300/600/9001500/2500,PN2.5/6/10/16/25/40,0-63mpa,150LB-2500LB,Class150-2500/ PN6-PN100 |
| Process: | Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment | Surface Treatment: | Heat Treatment,Galvanized,Black Oxidation,customize,pickeling |
| Color WN Flange: | Yellow,Black,Rust-proof Oil,Clear | Packing: | Wooden Case,Plywood\wooden Pallets,palletsor As The Customers Requirements |
| Technics: | Froged,Advanced,Forging | Item: | Steel Flange,CNC Presicion Machining Part |
| High Light: | Weld Neck Flat Face Flange Carbon Steel,Weld Neck Flat Face Flange Stainless Steel,Welding Neck Flange ASME B16 5 Class 150 |
||

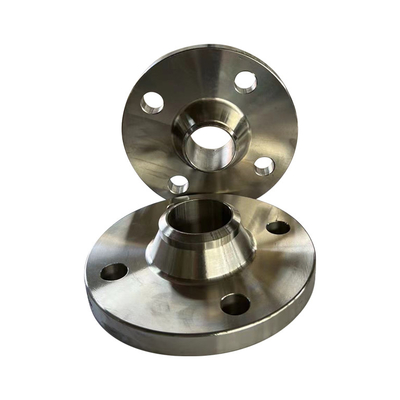

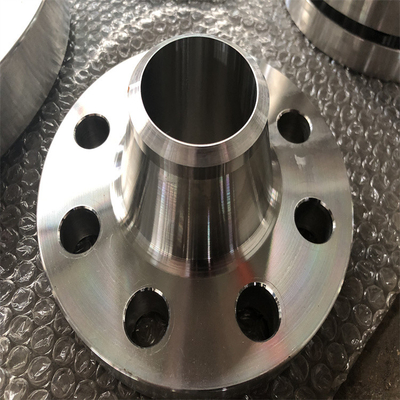

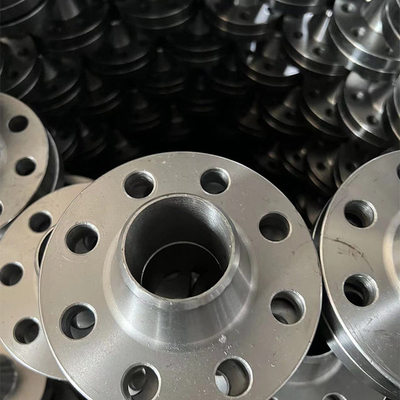

Customized Forged Carbon Steel Stainless steel plate flat Standard ASME Weld Neck Flange
Product Name: Customized Forged Carbon Steel Stainless steel plate flat Standard ASME Weld Neck Flange
Packing:
Sea-worthy Plywood cases or Pallet with polyethylene film or as customers’ request
Common Flange Standard:
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" |
LBS: 150 300 400 600 900 1500 2500 |
SO.WN,SW,TH,LJ,BL |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
| 3 |
LONG WELDING NECK FLANGES B16.5 |
1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
| 4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
| 7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
| 11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
| 12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
| 13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
| 14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
| 15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
| 16 | DIN FLANGE | DN10-4000 |
PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 |
SO.WN,SW,TH,LJ,BL |
| 17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 | TH SO WN BL |
Factory Information:
Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.
FAQ:
Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.
Q2. What are your company's main products ?
A2: Our main products are flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
