Product Details:
|
| Connection: | Buttweld | Head Code: | Round |
|---|---|---|---|
| Quality: | High Quality | Surface Treatment: | Brush |
| Usage: | Food,Water System,Shipbuilding,Natural Gas | Material: | 304,316,316L |
| Application: | Connect Pipe | Technics: | Forged |
| High Light: | ASME B16.28 Stainless Steel Reducer,Stainless Steel Reducer DIN2605,Seamless Buttweld Fittings |
||

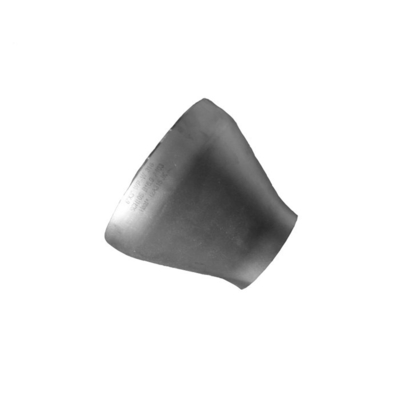

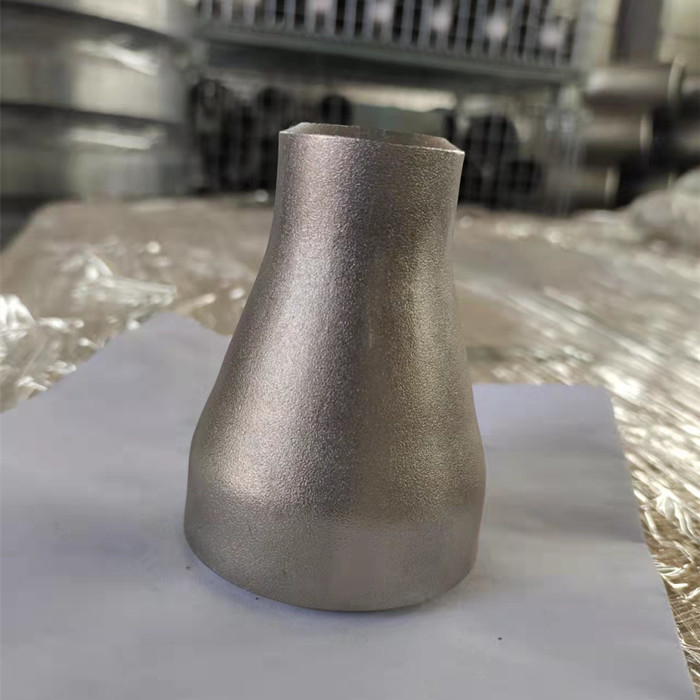

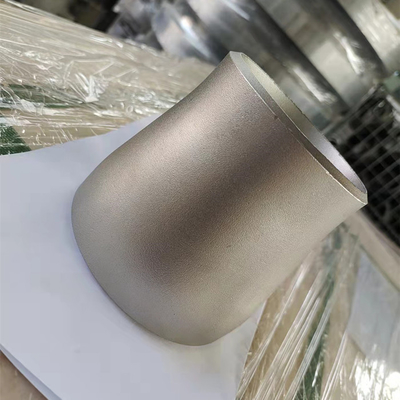

Buttweld Fitting Stainless Steel Eccentric Reducer Fittings With Brush Finish
The diameter reducer forming process of the reduceris to put the tube blank with the same diameter as the big end of the big and small heads into the forming die, and by pressing along the axial direction of the tube blank, the metal moves along the die cavity and shrinks to form. According to the size of the reducing diameter of the reducer, it is divided into one press forming or multiple press forming. Note that the large and small heads are also suitable for reducing the diameter of pipes in the environmental protection and dust removal industry. They are generally made of steel plates, which are rolled, cut and welded. The diameters of the pipes are different. The materials are generally hot-rolled coils. The application is very good and can save costs.
| Product Name | Buttweld Fitting Stainless Steel Eccentric Reducer Fittings With Brush Finish |
| Type | concentric and eccentric reducer |
| Technical | Made From stainless Steel Pipe or stainless Steel Plate |
Standard | ANSI/ASME B16.9 & B16.28; GOST17375, 17376, 17377, 17378, 30753; JIS B2311; DIN2605, 2615, 2616, 2617 |
Material | Carbon Steel - ASTM A234 WPB; CT20, 09T2C; JIS G3452, SS400; ST35.8, P265GH |
Stainless Steel - ASTM A403 WP304/304L, WP316/316L, WP317/317L | |
WP321; 08X18H10, 03X18H11, 12X18G10T, 10X17H13M, 10X17H | |
SUS304/304L, SUS316/316L, SUS321; 1.4301, 1.4401, 1.4404 | |
Duplex SS - UNS S32304; S31500, S31803, S32205; S32900, S31260; S32750, S32760 | |
Size | 1/2" - 24" (seamless) & 4" - 72" (seam); DN15 - 1200 |
Wall Thickness | SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, STD, SCH40, SCH60, SCH80S, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS; 2 - 25 mm |
Connection | Butt Weld |
Surface Treatment | Shot Blasting; Electroplate; Hot Dip Galvanized; Paint; |
End Type | Bevelled End & Plain End |
Company Profile
Hebei Haihao Group Premium Pipeline Equipment Co.,Ltd is an international comprehensive pipeline products company. The factory is located in Cangzhou, "China’s capital of elbow and pipelines". The company is a factory of pipe products, the main products are pipe materials, pipe fittings, forged flanges and other pressure pipe components. Our products are exported to more than 20 countries and regions in the Middle East, Europe, Africa, America, Southeast Asia, South Korea, Pakistan, India, Singapore etc..Our company has strong technical force, advanced production equipment and complete detection means. Equipment level, production capacity and testing capacity are in the lead in the domestic industry.
Test
Before delivery, we will test the product to ensure the quality of the product
Package and delivery
FAQ
1. Q: Who are we?
We are factory of flange and pipe fittings loated in Cangzhou Country,Hebei province, China.
2. Q: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Q: What can you buy from us?
Flange,Forged Fitting,Pipe Fittings
4. Q: Why should you buy from us not from other suppliers?
First of all, we are the factory of flange and pipe fittings, so the quality we can guarantee.
Second We have a professional technical team. Products can be designed according to customer needs.
Third no matter pre-sale or after-sale, we always put the interests of customers first, and consistently provide customers with better services
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
