Product Details:
|
| Warranty: | 180 Months Steel Flange | Carbon Steel Welding Pipe Flange: | Steel Plate Flanges Carbon Steel Welding Pipe Flange Steel Plate Flanges |
|---|---|---|---|
| Weld Neck Pipe Flanges: | Stainless Steel F304 F304L F316 Flange | Steel Plate Flanges: | Flat Flange PL RF Flat Flange |
| Size: | DN15-DN2000 Or More | Product Name:: | Plate Flange |
| SO/WN/SW/BL/PL Flanges: | Welded Threaded Flanges | Delivery Time: | 15 Days Flanges |
| Standard:: | ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME | Packing:: | Wooden Cases Or Pallets |
| Stainless Steel Plate/ Flat Flange: | Top Quality Reliable And Cheap Steel Flange | Color WN Flange: | Yellow,Black,Rust-proof Oil,Clear |
| High Light: | Carbon Steel Plate Flanges DN15,Carbon Steel Plate Flanges GB,ASTM A350 LF2 Flanges |
||

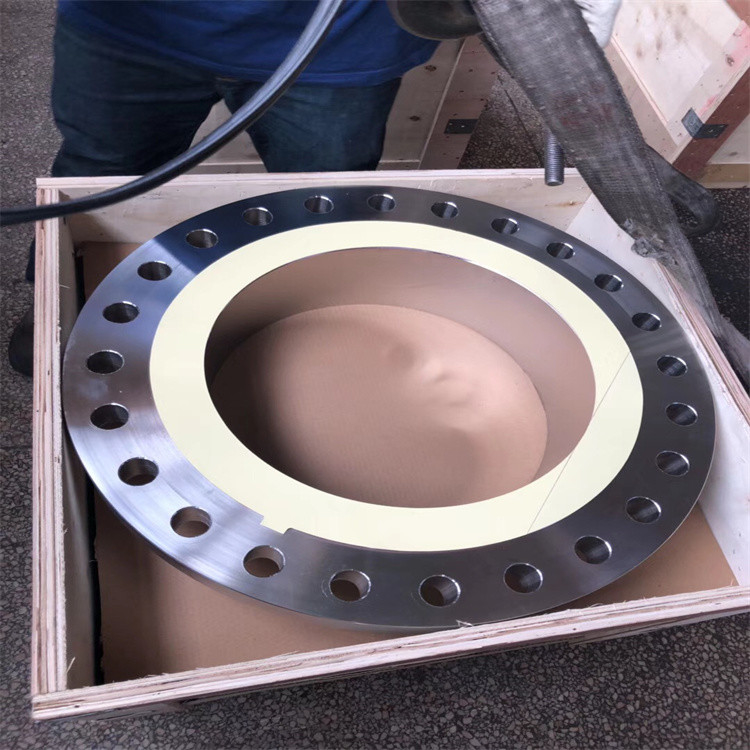

Steel Plate Flanges Carbon Steel Welding Pipe Flange Steel Plate Flanges
The Plate Flange is a kind of the flange, which weld with the end of the pipe through inserting the pipe into the hole. The sealing surface of plate flange is flat face. The cost is very low, it is very easy to produce, so it is widely used to many industries.
| FLANGES |
Steel Plate Flanges Carbon Steel Welding Pipe Flange Steel Plate Flanges
|
| Production Type |
Slip-on welding flange; welding neck flange; socket welding flange; threaded flange; lap joint flange; blind flange etc. |
| Size Range | From 1/2" up to 60" |
| Schedule | SCH STD, XS, XXS, SCH 10 ~ SCH 160 |
| Material Code: | |
| 1.Carbon steel | ASTM A105, ASTM A350 LF1/ LF2/LF3, ASTM |
| ASTM A694 F42/F46/F52/F56/F60/F65/F70 | |
| 2.Alloy steel | ASTM A182 F1, F5, F7, F9, F11, F12, F22, F91 |
| 3.Stainless steel | ASTM A182 F304/304L, F316/316L, F321, F347, |
| Standards | ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| Certification | ISO9001:2000 , API, CE |
| Applications range | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction,water etc. |
| Packaging: | Wooden Cases or pallet or as per customers requirement |
| Delivery Time: |
At the earliest ,within the period required by customer. |
Stainless Steel Material Sanitary Round Flange Sight Glass
PL Flange WN Flange SO Flange TH Flange SW Flange LJ Flange BL Flange Size1/2"~48"
pressure class:150 300 400 600 900 1500 and 2500 pn: 6 10 16 64 and 160,5K-40K
material:SS (stainless steel):304,304L,316,316,321
Face type
RF(raised face) M(male face)
FM(female face) T(tongue face)
G(groove face) RJ(ring joint face)etc.
standard Domestic Standard:
HG20592-20614/HG20615 JB4703/JB4721 SH3406
Foreign Standard:
ASME B16.5 /ASME B16.47/DIN/BS/JIS/KS
certificate:ISO9001:2000
Product Name: Customized Forged Carbon Steel Stainless steel plate flat Standard ASME Weld Neck Flange
Common Flange Standard:
Factory Information:
Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.
FAQ:
Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.
Q2. What are your company's main products ?
A2: Our main products are flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
