Product Details:
|
| Technics:: | Forged/Casting | Flange Type:: | PL SW BL LJ WN |
|---|---|---|---|
| Weld Neck Pipe Flanges: | PL SW BL LJ WN Flange | Material: | CS SS Alloy Steel |
| Heat Treatment: | Normalizing, Annealing, Quenching Tempering | Customization:: | According To Drawing |
| Application: | Water,Steam,Air,etc. | Standard DIN JIS GB Stainless Steel Welding Neck Flange: | 150lbs Threaded Forged Flanges |
| High Light: | Weld Neck Pipe Flanges JIS,Weld Neck Pipe Flanges GB,Stainless Steel Long Weld Neck Flanges |
||

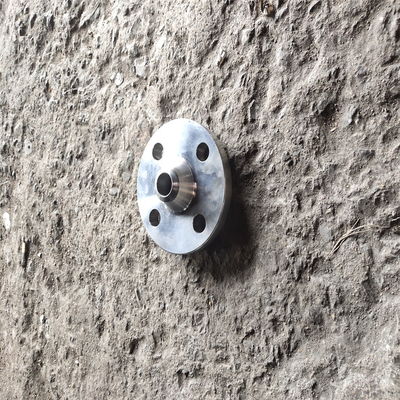

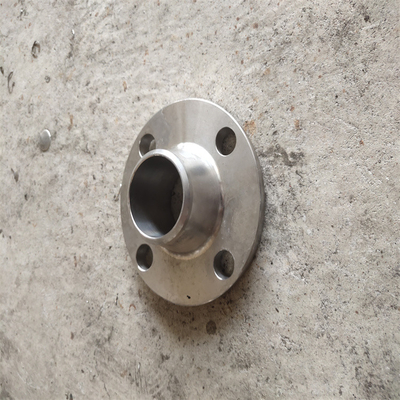

Standard DIN JIS GB Stainless Steel Welding Neck 150lbs Threaded Forged Flanges Weld Neck Pipe Flanges
FLANGE
We are professional manufacturer and supplier of flange.Quality guaranteed,on-time delivery, after-sales warranty,We hold
large inventories of steel products in a large of variety of grade,including stainless,duplex,nickel alloy,carbon steel and
more,The ISO 9001 management system ensure the high quality of the products.
Forging Service:
Forging is a manufacturing process involving the shaping of metal using localized compressive forces. New Densen offers open die forging, closed die forging and ring forging services. Material can be steel, iron and non-ferrous. Material can be handled include steel, iron, non-ferrous. Single component weight range is from 0.1Kg to 50,000Kgs.
Casting Service:
Casting is a manufacturing process in which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify.
New Densen offers multiple investment casting, sand casting, permanent casting, die casting, low pressure casting, ESR casting, lost foam casting, etc. Material can be handled include steel, iron, non-ferrous. Single component weight range is from 0.01Kg to 150 tons separately.
Socket welding flange refers to the flange in which the end of the pipe is inserted into the flange ring step, and the flange is welded on the pipe end and the outside. There are two types with and without neck. The flange with neck tube has good rigidity, small welding deformation and good sealing performance, and can be used in the occasions where the pressure is 1.0~10.0MPa. Type B flanges for containers are also socket welding flanges, which are used in occasions with high sealing requirements. When designing, the socket welding flange can be checked according to the integral flange
| Product Name | DN15 To DN600 Socket Welding Flange For Pipe Connect 300LB RF ASME B16.5 | |
| Types | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange | |
| Face Finish | RF,FF,RTJ,TF,GF | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2631 2573 2527 2565 2641 | |
| GOST | GOST 12820-80,GOST 12821-80,Gost Blind | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
| BS | BS4504,BS10 Table D/E | |
| SABS | SABS 1123 | |
| Material | ANSI | CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | CS SS400,SF440,SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| SABS | CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| SABS | DN10-DN600 | |
| Coating | varnish, black paint, anti-rust oil, galvanizing etc | |
| Usage | connection of all kinds of pipeline. to convey the water, steam, air, gas and oil | |
| Package | Wooden cases/pallets | |
| Certificate | ISO9001:2008, CE | |
| Delivery | According to the quantity | |
