Product Details:
|

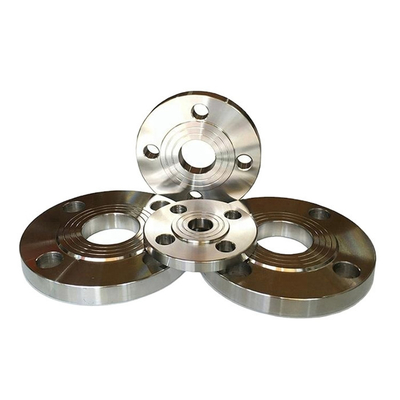

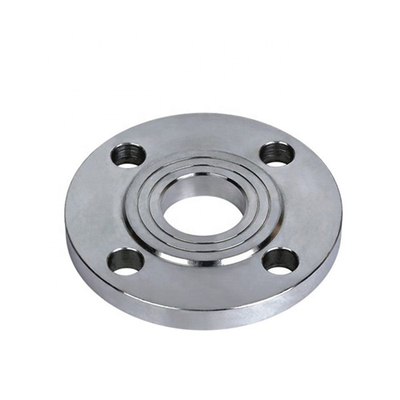

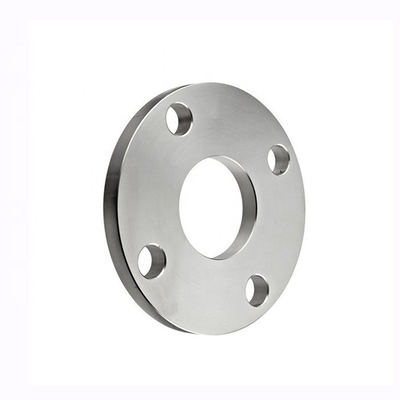

| Type: | Round Flange | Product Name: | DN50 A105 Carbon Steel Plate Flange |
|---|---|---|---|
| Standard:: | ANSI, DIN, JIS, ASME | Model Number: | ASME B16.5 DN15~DN2000 |
| Standard Or Nonstandard:: | Standard | Application: | Link Pipes |
| Connection: | Standard | Pressure: | Class 150; Class 300; Class 600; Class 900, PN |
| Usage: | Fluid Pipe, Oil Pipe, Gas Pipe, Structure Pipe, Boiler Tubes | Plate Type Flange: | Slip On Plate Flange |
| Size: | 1/2 To 60" | Material: | ASTM A105 ASTM A216 |
| High Light: | FF Steel Plate Flanges,Steel Plate Flanges A216,WNRF Steel Plate Flanges A216 |
||

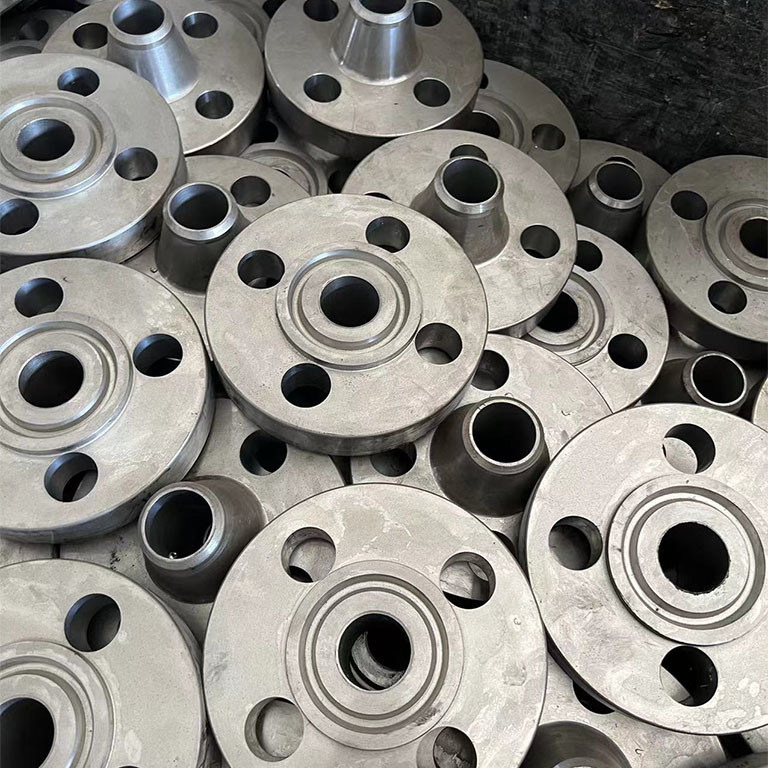

Carbon Steel Plate Flange Weld Neck Flange Super Duplex Flanges Plate Flanges FF Flange
|
1) ANSI B16.5, ASME B16.47 FLANGE Size range: 1/2" to 80" DN15 to DN2000 Design: welding neck, slip on, blind, socket welding, threaded, lap-joint Pressure: 150#, 300#, 600#,900#,1500#, 2500# Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS Material: carbon steel A105, stainless steel 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE Size range: DN15 to DN2000 Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100 Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE Size range: DN15 to DN2000 Design: slip on flange DIN2573,2576,2502,2503, 2543,2545 welding neck falnge DIN2631, 2632,2633,2634,2635 blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40 threaded falnge DIN2565,2566,2567,2567 loose flange DIN 2641,2642,2656,2673 Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404 Coating: rust-proof oil, transparent paint, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet
4) GOST FLANGE Size range: DN15 to DN 2000 Design : plate falnge 12820-80, welding neck flange 12821-80 Pressure: PN6, PN10, PN16, PN25, PN40 Material: carbon steel CT-20, stainless steel 304/304L, 316/316L Coating: rust-proof oil, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet
5) JIS FALNGE Size ragne : 15A to 2000A Design: SOP, BIND, SOH, Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K Material: carbon steel SS400, stainless steel SUS304, SUS316 Coating : rust-proof oil, cold and hot galvanize Packing: sea worthy plywooden case, wooden pallet |
Common Flange Standard:
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" |
LBS: 150 300 400 600 900 1500 2500 |
SO.WN,SW,TH,LJ,BL |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
| 3 |
LONG WELDING NECK FLANGES B16.5 |
1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
| 4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
| 7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
| 11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
| 12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
| 13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
| 14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
| 15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
| 16 | DIN FLANGE | DN10-4000 |
PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 |
SO.WN,SW,TH,LJ,BL |
| 17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 | TH SO WN BL |
Factory Information:
Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.
FAQ:
Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.
Q2. What are your company's main products ?
A2: Our main products are flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
