Product Details:
|
| Sureface Treatment: | Black Oil Painted | Pressure: | EN1092-1 PN16 |
|---|---|---|---|
| Standard: | EN1092 | Flange Material: | Carbon Steel |
| Process: | Forging+surface Treatment | Advance: | Rush Order Can Be Accepted |
| High Light: | EN1092 Flange ANSI 150 Slip On,XXS Flange ANSI 150 Slip On,Flange Slip On Pn16 |
||

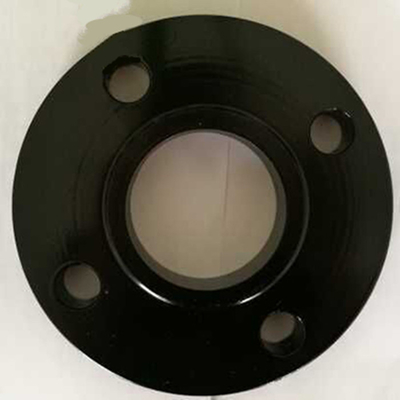

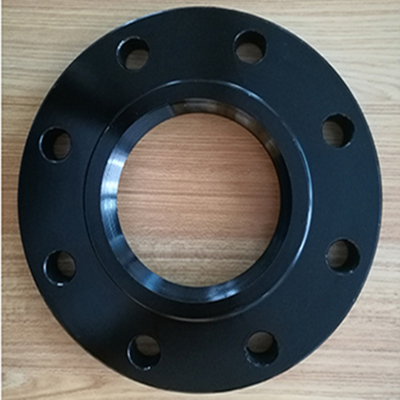

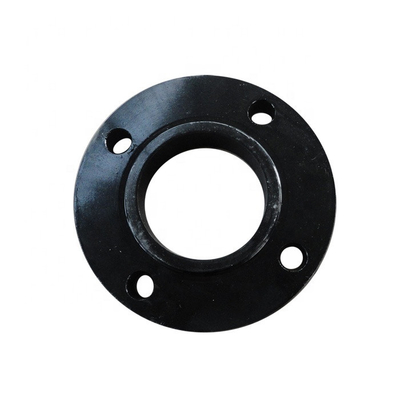

EN1092 PN16 Slip-On pipeline flanges Welding Types For Gas and Oil
EN1092-1 is the British (European) standard "Pipeline Flanges and Connectors". Hubbed slip-on flange for welding is a kind of flange commonly used in industrial applications, and the size also changes according to the pressure. Common pressures are PN6, PN10, PN16, PN25, PN40, PN63, etc
The date hubbed slip-on flange EN1092-1 PN16
| Nominal diameter | Pipe | Flange | Bore dia. | Bolting | Dia.of bolt hole | Raised face | |||||||
| IN | DN | OD | D | C2 | H1 | N2 | B1 | NO.(n) | L | Size | K | d | f1 |
| 2 1/2" | 65 | 76.1 | 185 | 18 | 32 | 104 | 77.5 | 4 | 18 | M16 | 145 | 122 | 2 |
| 3" | 80 | 88.9 | 200 | 20 | 34 | 118 | 90.5 | 8 | 18 | M16 | 160 | 138 | |
| 4" | 100 | 114.3 | 220 | 20 | 40 | 140 | 116 | 8 | 18 | M16 | 180 | 158 | |
| 5" | 125 | 139.7 | 250 | 22 | 44 | 168 | 141.5 | 8 | 18 | M16 | 210 | 188 | |
| 6" | 150 | 168.3 | 285 | 22 | 44 | 195 | 170.5 | 8 | 22 | M20 | 240 | 212 | |
| 8" | 200 | 219.1 | 340 | 24 | 44 | 246 | 221.5 | 12 | 22 | M20 | 295 | 268 | |
| 10" | 250 | 273 | 405 | 26 | 46 | 298 | 276.5 | 12 | 26 | M24 | 355 | 320 | |
| 12" | 300 | 323.9 | 460 | 28 | 46 | 350 | 327.5 | 12 | 26 | M24 | 410 | 378 |
|
Company Profile
Hebei Haihao Group Premium Pipeline Equipment Co.,Ltd is an international comprehensive pipeline products company. The factory is located in Cangzhou, "China’s capital of elbow and pipelines". The company is a factory of pipe products, the main products are pipe materials, pipe fittings, forged flanges and other pressure pipe components. Our products are exported to more than 20 countries and regions in the Middle East, Europe, Africa, America, Southeast Asia, South Korea, Pakistan, India, Singapore etc..Our company has strong technical force, advanced production equipment and complete detection means. Equipment level, production capacity and testing capacity are in the lead in the domestic industry.
Test
Before delivery, we will test the product to ensure the quality of the product
Package and delivery
FAQ
1. Q: Who are we?
We are factory of flange and pipe fittings loated in Cangzhou Country,Hebei province, China.
2. Q: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Q: What can you buy from us?
Flange,Forged Fitting,Pipe Fittings
4. Q: Why should you buy from us not from other suppliers?
First of all, we are the factory of flange and pipe fittings, so the quality we can guarantee.
Second We have a professional technical team. Products can be designed according to customer needs.
Third no matter pre-sale or after-sale, we always put the interests of customers first, and consistently provide customers with better services
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
