Product Details:
|
| Sureface Treatment: | Oiled, Painted | Pressure: | 3000lb |
|---|---|---|---|
| Standard: | API Standard Ansi B16.5 | Flange Material: | Carbon Steel |
| Process: | Forging | Inspection: | Company Or As Customer Requirment |
| High Light: | ansi slip on raised face flange,dn150 slip on raised face flange,3000lb flange slip on raised face |
||

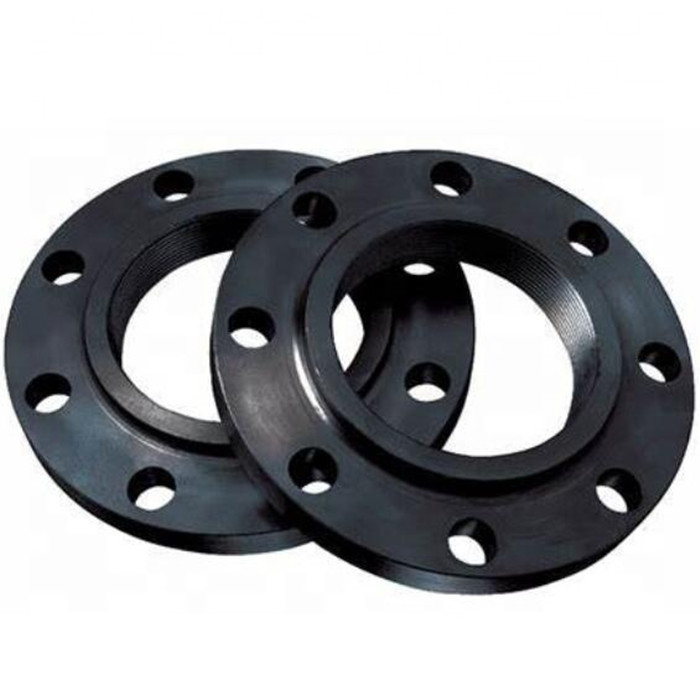

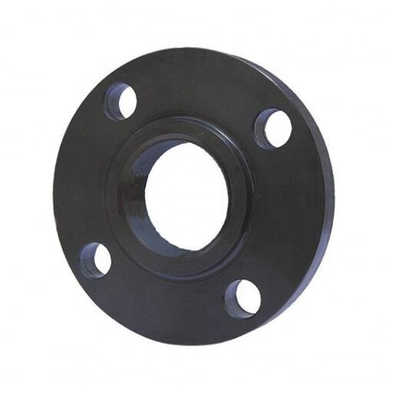

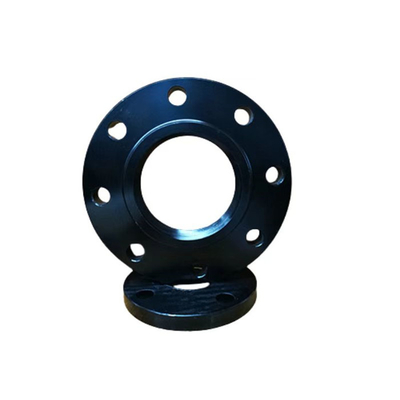

API Standard Ansi b16.5 DN150 3000lb Slip On Raised Face Flange
We are factory of pipe fittings for 39 years.flange is our main product.Hubbed slip-on flange for welding is a kind of flange commonly used in industrial applications
Slip on flange are slipped over the pipe and welded to provide strength and prevent leakage. This SORF flange can sometimes have a boss or hub and can be made with a bore to suit either pipe or tube. The Slip on Flanges is at the low-cost end of the scale. SORF flanges are not required high accuracy when cutting the pipe to length.
| Product Name | API Standard Ansi b16.5 DN150 3000lb Slip On Raised Face Flange | |
| Face Finish | RF,FF, | |
| Standard | API | Ansi B16.5 |
| Material | ASME | carbon steel |
| Pressure | 3000lb | |
| Coating | oiled black paint | |
| Usage | convey the water, steam, air, gas and oil | |
| Package | pallets or wooden box | |
| Delivery | 7-15 days | |
| advantage | rush order can be accept | |
The date hubbed slip-on flange EN1092-1 PN16
| Nominal diameter | Pipe | Flange | Bore dia. | Bolting | Dia.of bolt hole | Raised face | |||||||
| IN | DN | OD | D | C2 | H1 | N2 | B1 | NO.(n) | L | Size | K | d | f1 |
| 2 1/2" | 65 | 76.1 | 185 | 18 | 32 | 104 | 77.5 | 4 | 18 | M16 | 145 | 122 | 2 |
| 3" | 80 | 88.9 | 200 | 20 | 34 | 118 | 90.5 | 8 | 18 | M16 | 160 | 138 | |
| 4" | 100 | 114.3 | 220 | 20 | 40 | 140 | 116 | 8 | 18 | M16 | 180 | 158 | |
| 5" | 125 | 139.7 | 250 | 22 | 44 | 168 | 141.5 | 8 | 18 | M16 | 210 | 188 | |
| 6" | 150 | 168.3 | 285 | 22 | 44 | 195 | 170.5 | 8 | 22 | M20 | 240 | 212 | |
| 8" | 200 | 219.1 | 340 | 24 | 44 | 246 | 221.5 | 12 | 22 | M20 | 295 | 268 | |
| 10" | 250 | 273 | 405 | 26 | 46 | 298 | 276.5 | 12 | 26 | M24 | 355 | 320 | |
| 12" | 300 | 323.9 | 460 | 28 | 46 | 350 | 327.5 | 12 | 26 | M24 | 410 | 378 | |
Company Profile
Hebei Haihao Group Premium Pipeline Equipment Co.,Ltd is an international comprehensive pipeline products company. The factory is located in Cangzhou, "China’s capital of elbow and pipelines". The company is a factory of pipe products, the main products are pipe materials, pipe fittings, forged flanges and other pressure pipe components. Our products are exported to more than 20 countries and regions in the Middle East, Europe, Africa, America, Southeast Asia, South Korea, Pakistan, India, Singapore etc..Our company has strong technical force, advanced production equipment and complete detection means. Equipment level, production capacity and testing capacity are in the lead in the domestic industry.
Test
Before delivery, we will test the product to ensure the quality of the product
