Product Details:
|
| Elbow Color: | Carbon Steel Black Painting Red Painting Carbon Steel Elbow | Connection:: | Welding, Butt-Welding |
|---|---|---|---|
| Surface Treatment: | Sand Blasting, Hot Galvanized, Hot Galvanized/Light Oil/Black Painting, Transparent/Yellow/Black Anti-rust Paint, Anti-rust Oil | Connection: | Welding, Female, Male, Seamless&welding, Carbon Steel And Stainless Steel Heat Forged |
| Packaging Details: | Below 8", Will Be Packed By Plywood Case Above 8", Will Be Packed By Plywood Pallet | Head Code: | Round, Square, Equal |
| Color: | Black, Can Be Customed | Usage: | Oil Gas Water Industrial, Pipe-line Connection, Hydraulic Equipment, Joining Pipe Lines, Joining |
| Standard: | ISO EN1092 | Reducing Elbow Pipe Fittings: | Carbon Steel |
| Thickness: | SCH60 | Tee: | Equal |
| High Light: | Sch40 Carbon Steel 90 Degree Elbow,ASME B16.9 90 Degree Elbow,Welding Carbon Steel 90 Degree Elbow |
||

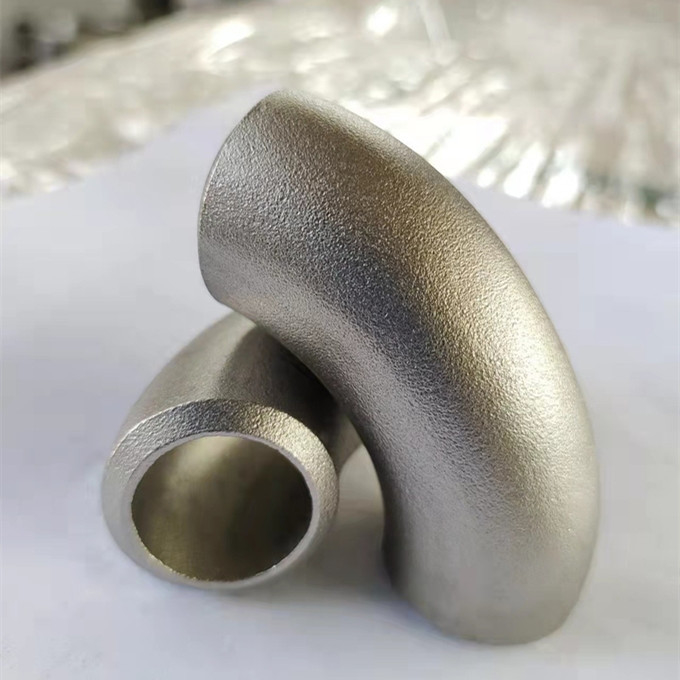

Sch40 Carbon Steel 90 Degree Elbow ASME B16.9 ASTM A234 Wpb
The Carbon Steel 90 Degree Elbow ASME B16.9 is a type of butt weld pipe fitting that is used to change the direction of flow in a pipeline system by 90 degrees. This elbow fitting is made from carbon steel materials and conforms to the ASME B16.9 standard, which specifies the dimensions, tolerances, and markings of butt-welding fittings for use in piping systems.
The Carbon Steel 90 Degree Elbow ASME B16.9 typically has a smooth surface finish, which reduces fluid turbulence and pressure drops in the pipeline system. The elbow fitting has a long radius design, which means that the centerline of the elbow is 1.5 times the nominal pipe size (NPS) of the connecting pipes. This design reduces the frictional losses in the pipeline system and helps maintain a smooth flow of fluids.
The Carbon Steel 90 Degree Elbow ASME B16.9 is available in different sizes, from ½ inch to 48 inches, and can be used in a variety of applications across different industries. It is commonly used in the oil and gas industry, petrochemical industry, power generation industry, and construction industry, among others. The elbow fitting is also easy to install and requires minimal maintenance, making it a cost-effective choice for various applications.
| Size: | Seamless elbow:1/2"~24" DN15~DN600,Welded Elbow: 4"~78" DN150~DN1900 |
| Type | Pipe fitting ASTM Forged Butt Welding Carbon Steel Pipe Fitting Elbow |
| Radius: | L/R Elbow( 90deg & 45deg & 180deg.),S/R Elbow (90deg & 180deg.) |
| Material | carbon steel |
| standards | ASME B 16.5 ANSI,DIN,JIS,ASME and UNI etc |
| Wall Thickness: | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s |
| Manufacturing standard: | ASME,ANSI, JIS, DIN, EN, API 5L, etc. |
| Bending Angle: |
Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients. |
| Connection | Butt-welding, SM |
| Applicable standard | ASME,ASTM,MSS,JIS,DIN,EN |
| Quality:ISO 9001 | ISO2000-Quality-Systerm has been passed |
| End Bevel: | According to the bevel of welding pipe fittings construction |
| Surface treatment: | Shot blasted, rust-proof black oil, black painting |
| Packing: | wodden case,wooden pallet plastic bag or as per customers' requirements |
| Delivery time | General 7-10 working days ,but offen accoding order's quantity . |
Material:A234 WPB, A105, A283-D, A135-A, A53-A, A106-A, A179-C, A214-C, A192, A226, A315-B, A53-B, A106-B, A106-C, A178-C, A210-A-1, A210-C.
Certificates: API5L ,ISO 9001:2008,SGS, BV, ccic
Wall thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment: black paint, varnish, oil, galvanized
Marking: Standard marking, or according to your request. Marking Method: Spray white paint
Pipe Ends: Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Packaging: wooden case & pallet
Test: Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
Application: liquid delivery
Structure pipe. High and low pressure Boiler tube .Seamless steel tubes for petroleum cracking .oil pipe.gas pipe
Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. was founded in 1982, Haihao Group owns a wholly-owned subsidiary named Hebei Haihao Group Premium Pipeline Equipments Co., Ltd. Hebei Haihao High-pressure Flange & Pipe Fittings Group Co., Ltd. covers an area of 580,000 square meters, has 660 employees, total assets of RMB 250 million, and an annual output of nearly 100,000 tons. Currently, Haihao Group has 22 advanced flange and pipe fitting production lines; exquisite processes including forging, stamping, medium-frequency pushing, machining, cold forming, hot extrusion and heat treatment; and advanced detection devices in terms of chemical analysis, metallographic analysis, non-destructive testing and mechanical performance tests. Haihao Group produces flange and pipe fittings, covering different specifications of high-pressure, medium-pressure and low-pressure stainless steel, alloy steel and carbon steel flange, elbows, elbow pipes, tees, reducers, socket components and other pipeline components in line with the international and Chinese standards.
“Haihao Group” trademark has been identified as “China Famous Brand” by the State Administration for Industry and Commerce. Haihao Group is the first enterprise winning a famous brand in China’s pipeline accessory industry and have won the title of Hebei Brand-name Products. Furthermore, Haihao Group has passed the certifications of quality, environment and occupation health safety management system, American Bureau of Shipping ABS and French Classification Society, and the EU certification. Haihao Group is a member and supplier of the CNPC (China National Petroleum Corporation), the SINOPEC (China Petrochemical Corporation) and the State Power Corporation Power Station Accessory Network. Moreover, Haihao Group is a member of China Forging Association and have been rated as a Grade AAA Credit Enterprise by the Agricultural Bank of China Hebei Branch. Our Haihao brand flange and pipe fittings sell well in over 30 provinces and cities of China and are also exported to more than 20 other countries and regions. Haihao Group provides high-quality products and set up a good reputation.
ELbows packing
Wooden box Wooden pallet
