Product Details:
|
| Technics: | Cast Iron Floor Flange | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Application: | Building Construction | Advancetage: | Easy To Install |
| Technique: | Hot Rolled | Inspection: | Factory Or Third Party Assigned |
| Heat Treatment: | Normalizing, Annealing, Quenching Tempering | Connection: | Welding |
| High Light: | En1092 1 Inch Threaded Pipe Flange,1 Inch Threaded Pipe Flange PN10,Threaded Slip On Flange DN65 |
||

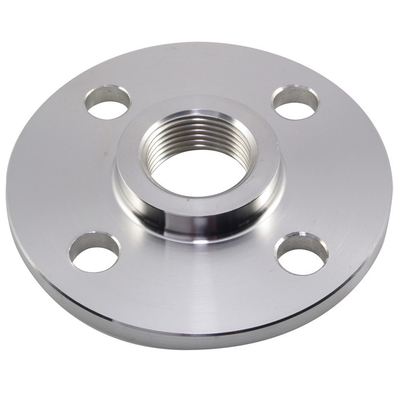

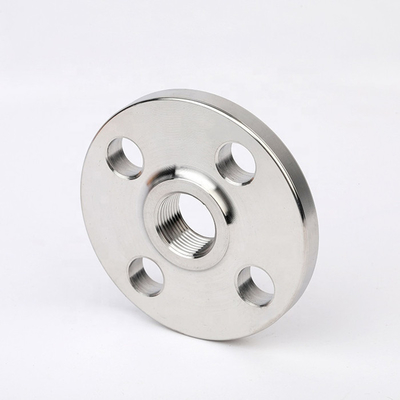

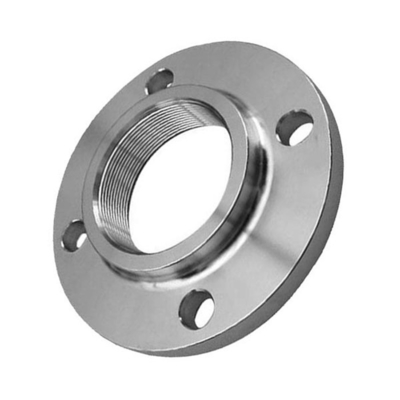

En1092-1 PN10 PN16 DN65 Steel Threaded Pipe Flange For Pipe Connect
Threaded flange is a kind of non-welded flange, which processes the inner hole of the flange into pipe threads, and is matched with the threaded pipe to realize the connection. Compared with the flat welding flange or the butt welding flange, the threaded flange has the characteristics of convenient installation and maintenance, and can be used on some pipelines where welding is not allowed. Alloy steel flanges have sufficient strength, but are not easy to weld, or the welding performance is not good, and threaded flanges can also be selected. However, when the temperature of the pipeline changes rapidly or the temperature is higher than 260°C and lower than -45°C, it is recommended not to use threaded flanges to avoid leakage.
| Product Name | En1092-1 PN10 PN16 DN65 Steel Threaded Pipe Flange For Pipe Connect | |
| Types | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange | |
| Face Finish | RF,FF,RTJ,TF,GF | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2631 2573 2527 2565 2641 | |
| GOST | GOST 12820-80,GOST 12821-80,Gost Blind | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
| BS | BS4504,BS10 Table D/E | |
| SABS | SABS 1123 | |
| Material | ANSI | CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | CS SS400,SF440,SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| SABS | CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| SABS | DN10-DN600 | |
| Coating | varnish, black paint, anti-rust oil, galvanizing etc | |
| Usage | to convey the water, steam, air, gas and oil | |
| Package | Wooden cases/pallets | |
| Certificate | CE, ISO9001:2008, | |
| Delivery | According to the quantity | |
Company Profile
Hebei Haihao Group Premium Pipeline Equipment Co.,Ltd is an international comprehensive pipeline products company. The factory is located in Cangzhou, "China’s capital of elbow and pipelines". The company is a factory of pipe products, the main products are pipe materials, pipe fittings, forged flanges and other pressure pipe components. Our products are exported to more than 20 countries and regions in the Middle East, Europe, Africa, America, Southeast Asia, South Korea, Pakistan, India, Singapore etc..Our company has strong technical force, advanced production equipment and complete detection means. Equipment level, production capacity and testing capacity are in the lead in the domestic industry.
Test
Before delivery, we will test the product to ensure the quality of the product
