Product Details:
|
| Application: | Oil And GSG,FGD, SWRO, Water Treatment | Heat Treatment: | In-line Bright Annealing |
|---|---|---|---|
| Flange Standard: | ANSI | Material: | TP316L |
| Pressure: | Class 150LB | Package: | Wooden Boxes Package |
| Type: | Raised Face | Surface: | Smooth |
| High Light: | ANSI Stainless Steel Threaded Pipe Flange,Stainless Steel Threaded Pipe Flange 150LB,Forged Threaded Flange TP316L |
||

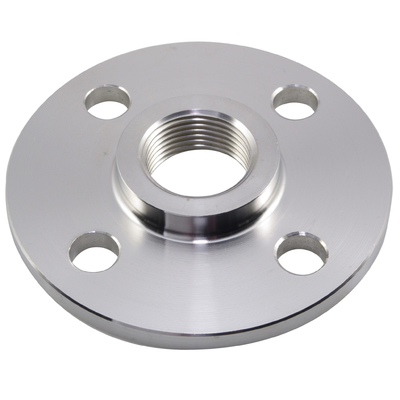

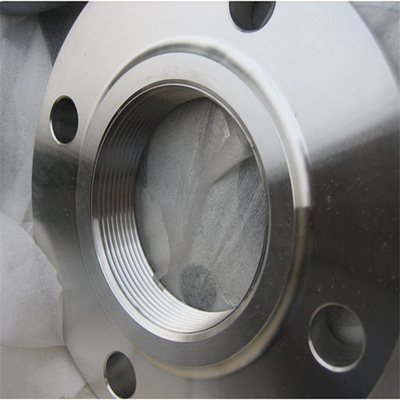

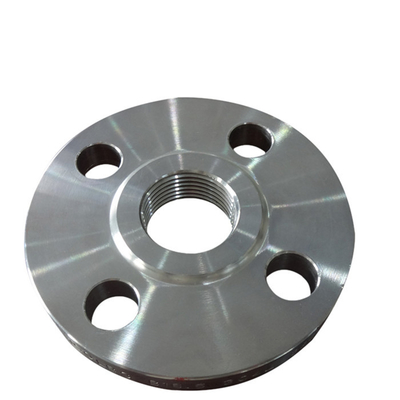

ANSI Class 150LB Forged Stainless Steel threaded Flanges For Pipe Line
Threaded flange refers to a flange that uses threads to connect with pipes. When designing, it can be handled as loose flange. The advantage is that there is no need for welding, and the additional moment to the cylinder or pipe when the flange is deformed is very small. Can be used on some pipelines where welding is not allowed on site
| Product Name | ANSI Class 150LB Forged Stainless Steel threaded Flanges For Pipe Line | |
| Types | Threaded Flange | |
| Face Finish | RF,FF,RTJ,TF,GF | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2631 2573 2527 2565 2641 | |
| GOST | GOST 12820-80,GOST 12821-80,Gost Blind | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
| BS | BS4504,BS10 Table D/E | |
| SABS | SABS 1123 | |
| Material | ANSI | CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | CS SS400,SF440,SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| SABS | CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| SABS | DN10-DN600 | |
| Coating | varnish, black paint, anti-rust oil, galvanizing etc | |
| Usage | to convey the water, steam, air, gas and oil | |
| Package | Wooden cases/pallets | |
| Certificate | CE, ISO9001:2008, | |
| Delivery | According to the quantity | |
Company Profile
Hebei Haihao Group Premium Pipeline Equipment Co.,Ltd is an international comprehensive pipeline products company. The factory is located in Cangzhou, "China’s capital of elbow and pipelines". The company is a factory of pipe products, the main products are pipe materials, pipe fittings, forged flanges and other pressure pipe components. Our products are exported to more than 20 countries and regions in the Middle East, Europe, Africa, America, Southeast Asia, South Korea, Pakistan, India, Singapore etc..Our company has strong technical force, advanced production equipment and complete detection means. Equipment level, production capacity and testing capacity are in the lead in the domestic industry.
Test
Before delivery, we will test the product to ensure the quality of the product
Package and delivery
FAQ
1. Q: Who are we?
We are factory of flange and pipe fittings loated in Cangzhou Country,Hebei province, China.
2. Q: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Q: What can you buy from us?
Flange,Forged Fitting,Pipe Fittings
4. Q: Why should you buy from us not from other suppliers?
First of all, we are the factory of flange and pipe fittings, so the quality we can guarantee.
Second We have a professional technical team. Products can be designed according to customer needs.
Third no matter pre-sale or after-sale, we always put the interests of customers first, and consistently provide customers with better services
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
